The Enhanced Ethernet Switch is capable of Audio Video Bridging (AVB) functions and supports the following Time Sensitive Networking (TSN) standards: 802.1AS, 802.1Qat, Qav, Qbv, Qbu, Qci. I 增强型以太网交换机具有音频视频桥接（AVB）功能，并支持以下时间敏感网络（TSN）标准：802.1AS，802.1Qat，Qav，Qbv，Qbu，Qci。 The switch is equipped with a CAN-FD port and two SFP+ ports. SFP+ ports allow the users to have two 10 Gbps ports. Enhanced Ethernet Switch is compatible with our products 100BASE-T1 SFP Module and 1000BASE-T1 SFP Module so the SFP+ ports can also be used as additional 100/1000BASE-T1 ports making it possible to have up to ten 100/1000BASE-T1 ports on an AVB capable switch! 该交换机配备了一个CAN-FD端口和两个SFP +端口。 SFP +端口允许用户拥有两个10 Gbps端口。 增强型以太网交换机与我们的兼容产品100BASE-T1 SFP模块和1000BASE-T1 SFP模块，因此SFP +端口也可以用作附加的100 / 1000BASE-T1端口，从而使AVB上最多可以有十个100 / 1000BASE-T1端口的交换机！ Interface 接口

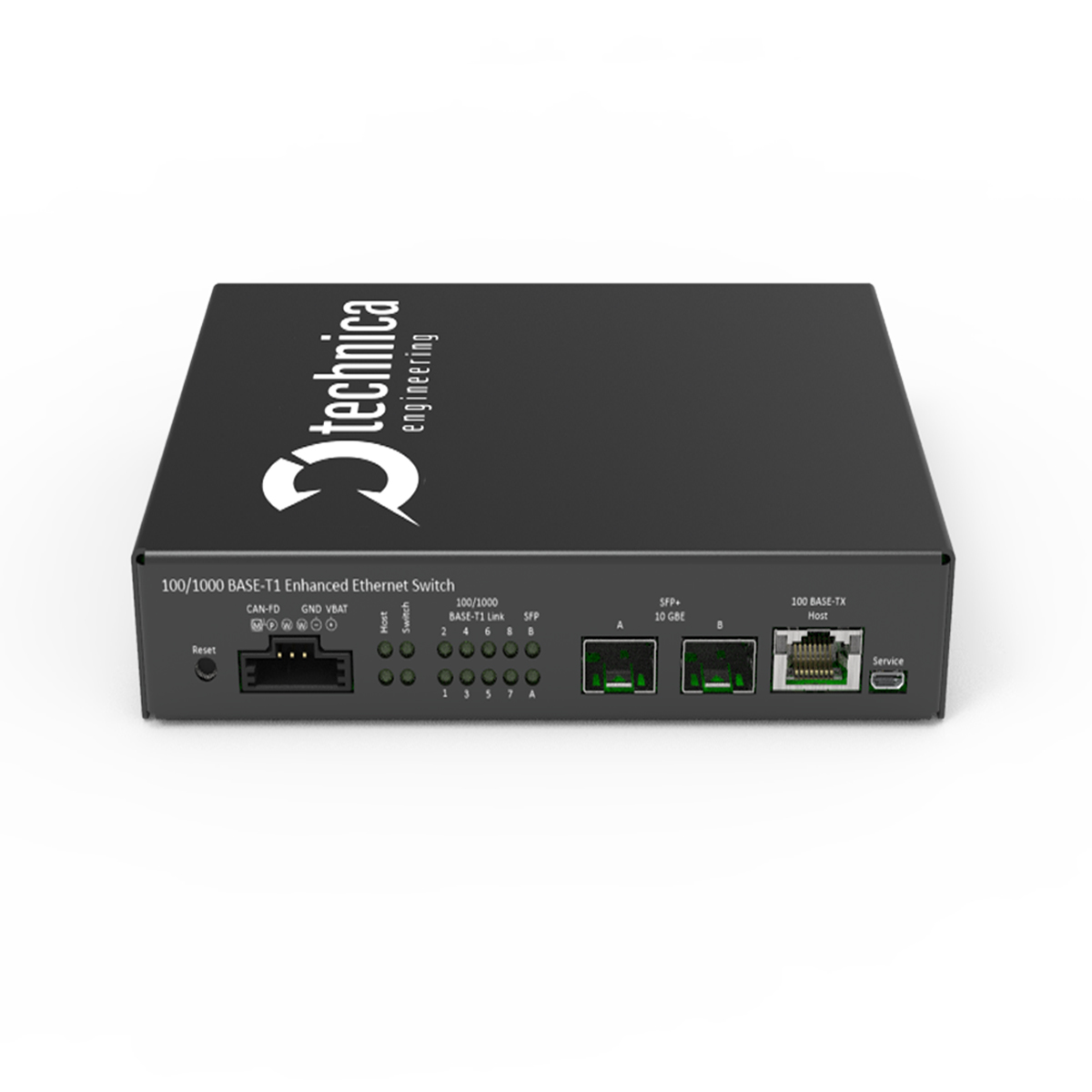

Enhanced Ethernet Switch has following ports Enhanced Ethernet Switch 具有下列通道
-
-
8 × 100/1000BASE-T1 ports
-
2 × 10 GBE SFP+
-
1 × 1000BASE-T(RJ45)
-
1 × CAN (wakeup)
-
FEATURES 产品特点
-
8x 100/1000BASE-T1 ports 8个100/1000BASE-T1 端口
-
2x SFP+ Ports for Logging data output (up to 10Gps each) 2个SFP +端口用于记录数据输出（每个端口高达10Gps）
-
1x 100BASE-T Fast Ethernet Port for configuration 1个100BASE-T快速以太网端口用于配置
-
1x CAN-FD for limited scope use 1个CAN-FD端口可以有限使用
-
MATEnet Connector for 100/1000BASE-T1 MATEnet连接器用于100/1000BASE-T1端口
-
Easy configuration via webserver and data telegram 通过网络服务器和数据报轻松配置
-
Import and export of configuration 导入和导出配置
-
Wake up functionality 唤醒功能
-
Possibility to reset to default settings by push button 可以通过按钮重置为默认设置
-
Dual Speed Capable 100/1000BASE-T1 双速功能100/1000BASE-T1
-
Interoperability: TC1 & TC12 Compliant 互操作性：符合TC1和TC12
-
TSN Support: 802.1AS, 802.1Qat, Qav, Qbv, Qbu, Qci TSN支持：802.1AS，802.1Qat，Qav，Qbv，Qbu，Qci
-
High voltage range: 12 to 24 volt DC 宽电压范围：12至24伏直流电
-
It should be possible to set: 可以设置
-
-
Legacy/IEEE mode for 1000BASE-T1 适用于1000BASE-T1的传统/IEEE 模式
-
Master/slave mode 主/从模式 -
1000BASE-T1/100BASE-T1 Mode. 1000BASE-T1/100BASE-T1模式。
-
-
Replicate the same behavior that it is currently available in the Media Gateway. 具有Media Gateway同样的功能。
-
LED Statas LED状态显示
-
Robust steel case 坚固的不锈钢表壳
-
Size：164 x 120 x 35 mm 尺寸：164 x 120 x 35 毫米
