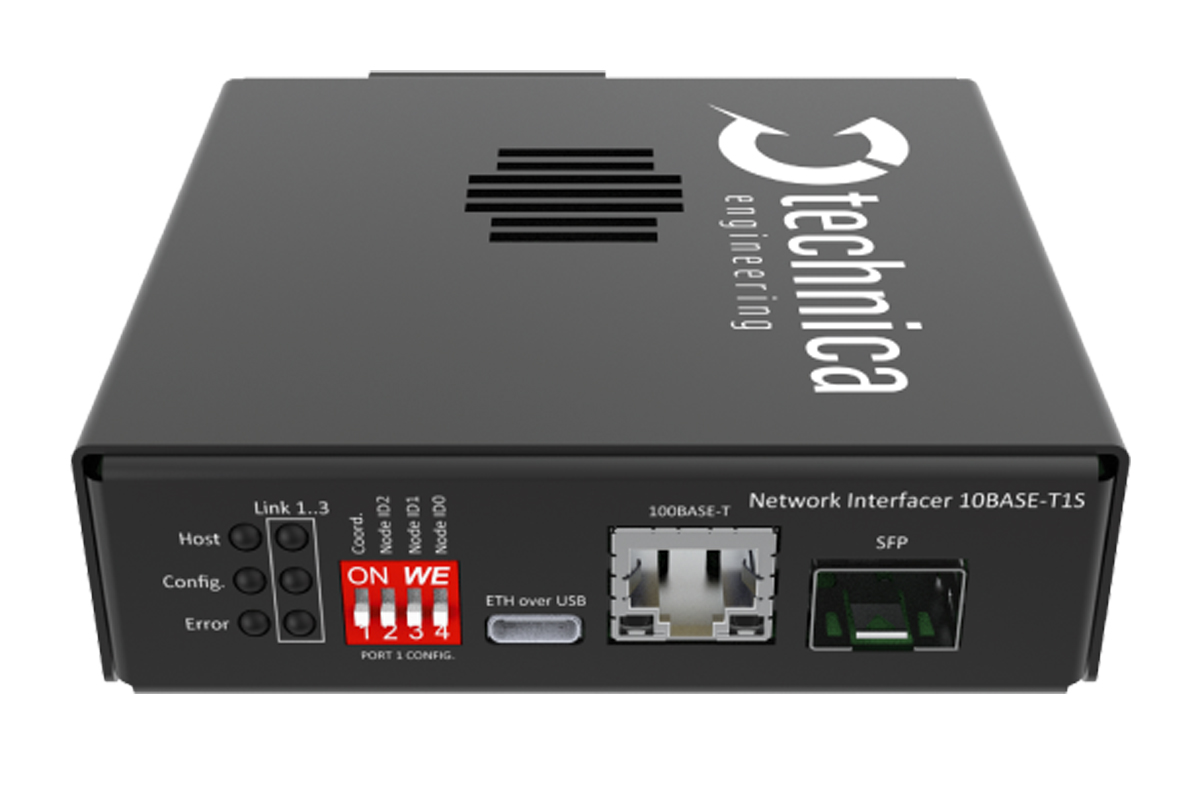

The future of Automotive networking is undergoing a transformative shift, where the convergence of point-to-point and Bus topologies is now a reality. In response to this, we introduce our novel 10BASE-T1S Network Interfacer, an innovative Ethernet bridge that closes the gap between these two evolving technologies.
汽车网络的未来正经历一场变革性的转变，点对点拓扑与总线拓扑的融合如今已成为现实。为此，我们推出了全新的10BASE-T1S 网络接口器—— 这是一款创新型以太网桥接器，可消除这两种新兴技术之间的壁垒。
Feature功能
- Device Feature设备功能
- Configuration via DIP Switches通过拨码开关配置
- Configuration Webpage 配置网页
- Status LEDs状态指示灯
- Port Statistic Dashboard端口统计面板
- Open Alliance TC10 (Wake/Sleep) TC10（唤醒 / 休眠）
- Import-/Export of Configurations配置导入 / 导出
- Core Feature Package
- Single 10BASE-T1S port单路 10BASE-T1S 端口
- PLCA configuration物理层协调适配（PLCA）配置
- 10BASE-T1S Routing，10BASE-T1S 路由功能
- 10BASE-T1S Egress mirroring，10BASE-T1S 出口镜像
- Diagnostics诊断功能
- 10BASE-T1S IEEE Test Modes
- Custom 10BASE-T1S frames generator，定制化 10BASE-T1S 帧生成器
- Remote API远程API
- Advanced Feature Package
- 3x 10BASE-T1S Ports三路 10BASE-T1S 端口
- Multi-node Injector多节点注入器
- Switch functionalities交换机功能
- Port segmentation 端口分段
- Single / Double VLAN tagging Mode单 / 双 VLAN 标签模式
- Adress resolution table 地址解析表
Technica Data技术数据
- Interfaces
- USB-C ethernet port (1x 10/100BASE-T)
- RJ-45 connector (1x 100BASE-T)
- H-MTD connector (1x 100/1000BASE-T1)
- SFP port (1x 100/1000BASE-T)
- Micro-HDMI (only for internal usage)
- Operating Temperature 温度: -40 °C to +85 °C
- Supply Voltage电压: 6 V to 30 V DC (typ. 12 V)
- System connector :系统接插件 MQS 16 pin connector for power and 10BASE-T1S bus
- Power consumption功耗: 5 – 10 W
- IP Protection Class IP等级: IP20
- Housing Dimensions 外壳尺寸: 99.5 mm (W) × 93 mm (L) × 32 mm (H)
- Weight重量: 0,3 kg (approx.)
