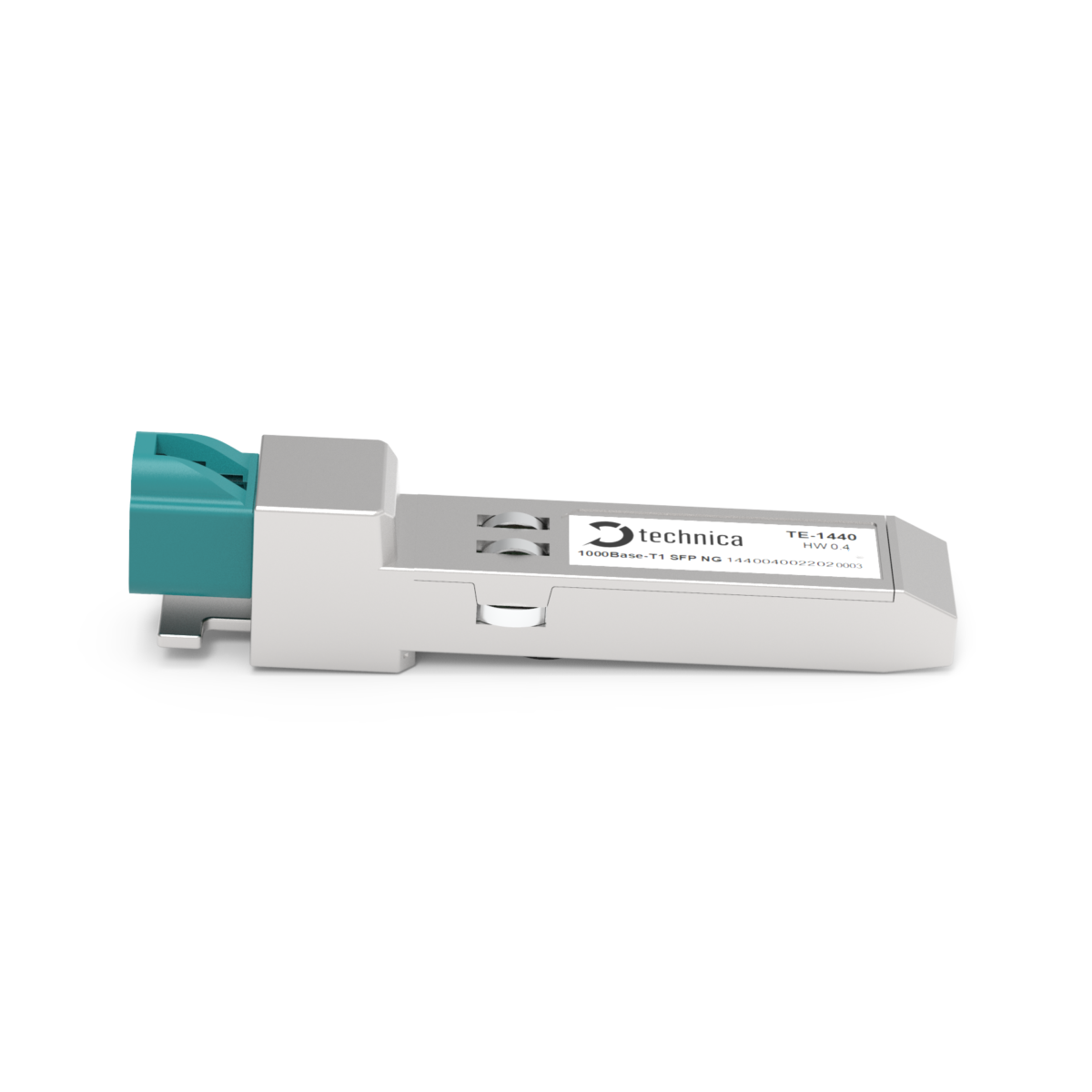

1000BASE-T1 SFP MODULE H-MTD

The 1000BASE-T1 SFP Module H-MTD is a solution to convert between 1000BASE-T1 and SGMII using an H-MTD connector. It fits into a standard SFP (Small Form-factor Pluggable) slot and provides an Automotive Ethernet interface (100/1000 Mbit/s full-duplex, on one single twisted pair cable).
When plugged into approved devices, Hardware-in-Loop (HiL) systems, and test benches with compatible chassis, the SFP Module has to be configured to Automotive Ethernet after power-up.
1000BASE-T1 SFP Module H-MTD是一款通过H-MTD接插件实现1000BASE-T1和SGMII转换的模块，它适用于SFP插槽，并提供一路千兆车载以太网接口。当插入到允许的设备中，硬件在环系统，测试台架中，SFP模块需要在上电后对车载以太网进行配置。

The device features four dip switches for the following functionalities:
本设备有4个dip手动开关，可以实现如下功能

• Dip 1: Slave / Master主/从

• Dip 2: 100/1000Mbps百/千兆

• Dip 3: IEEE/Legacy mode

• Dip 4: SingleSendS/MultipleSendS mode 单/双SendS模式

The device can be used together with other Technica Engineering products, like the Media Gateway or the Enhanced Ethernet Switch (EES) , or other approved chassis of Technica partners.
本设备可以与其它Technica Engineering的产品一起工作，比如MediaGateway, 或者Enhanced Ethernet Switch（EES）, 或Technica伙伴其它经过批准的设备
However, the SFP Modules do not work as a “plug-and-play” solution. To set up the SFP Module, the user must be able to interact with the registers of the Phy via I²C
and get in touch with Marvell (the PHY manufacturer) to receive the NDA-protected PHY-register setting datasheet to initialize the Phy.
Some commercially available devices already recognize and work with the SFP modules successfully, please check the supported devices together with us.
但是，本SFP模块不是一个"插入即可使用"的设备，以调试SFP模块，使用者需要通过I2C与寄存器进行交互，请联系Marvell获取NDA保护下的寄存器设置手册以初始化Phy.
一些商用设备已经能识别并和本SFP模块一起正常工作。请联系我们确认是否支持。

FEATURES

• 1000BASE-T1 to SGMII conversion
  1000BASE-T1到SGMI转换

• Marvell 88Q2112 A2 PHY
  Marvell 88q2112 A2 Phy

• Four dip switches
  4个dip切换开关

• H-MTD connector for Automotive Ethernet
  H-MTD接插件用于车载以太网

• Fits into a standard SFP slot
  适配标准SFP插槽

• IP 20 rating
  IP20等级

• Supports I2C for internal register access
  支持I2C内部寄存器访问

• Status LEDs
  状态灯

• Power requirements: 3.3 Volt DC
  电源要求： 3.3伏直流

• Size: 68 x 14 x 14 mm
  大小：68 x 14 x 14 毫米
