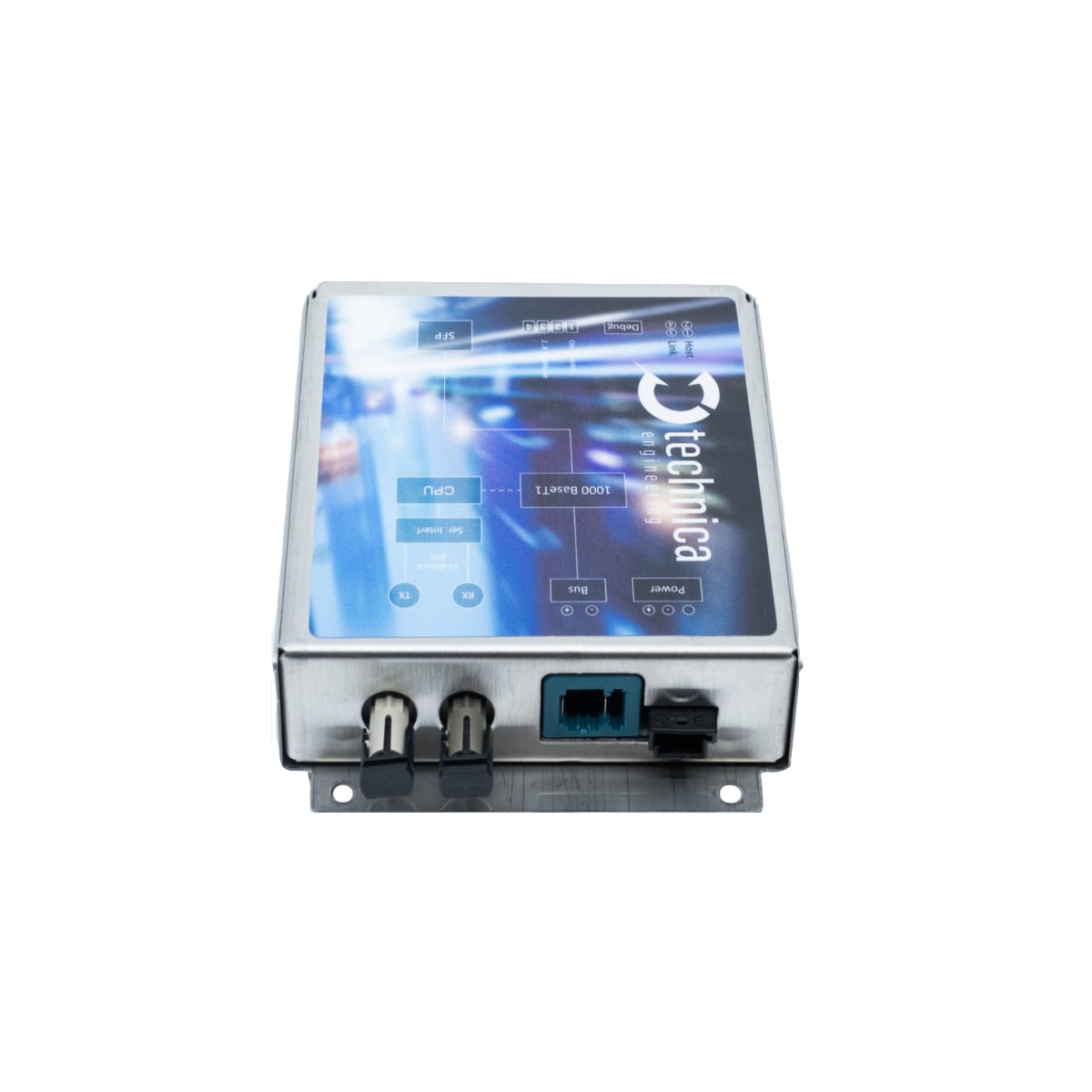

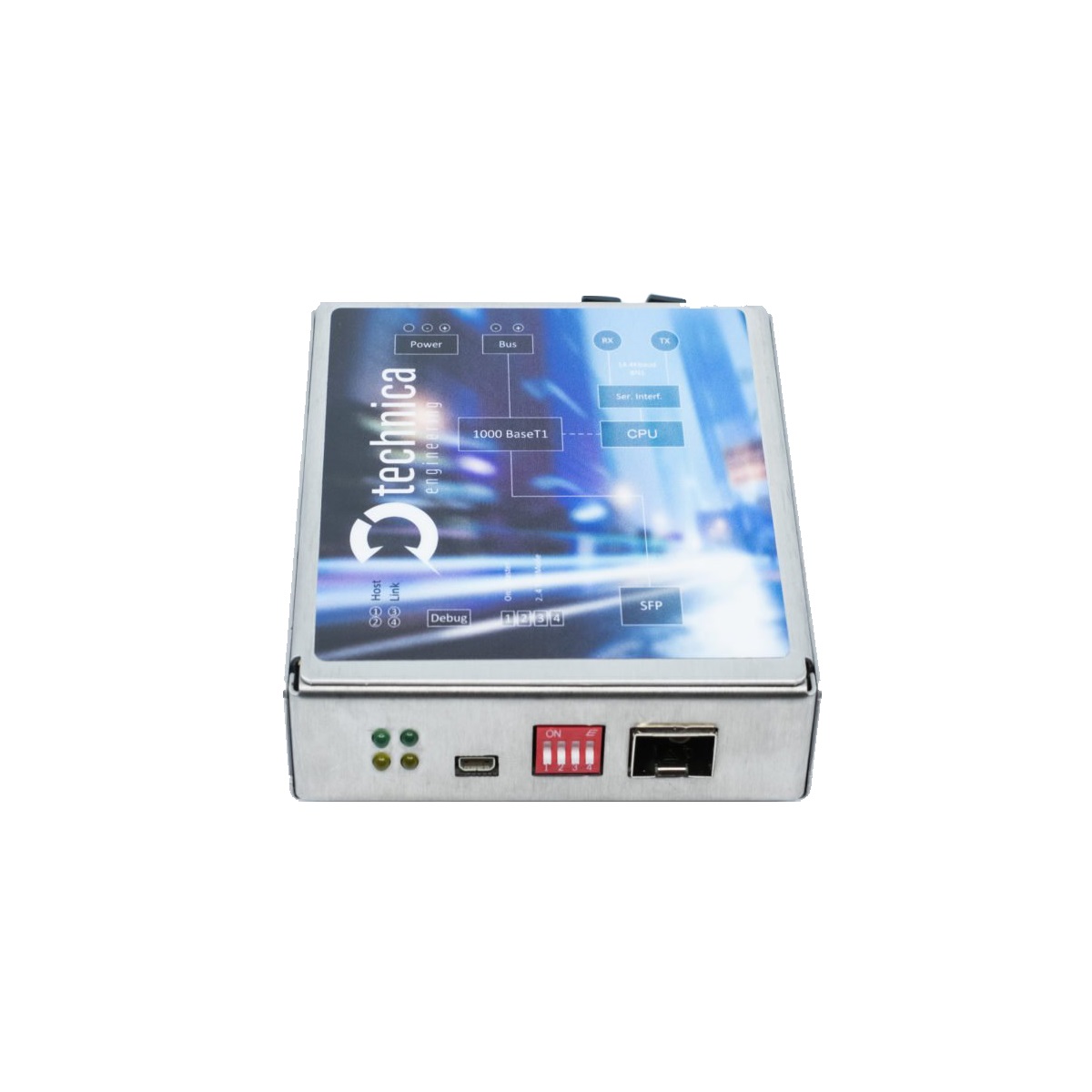

Description描述 The 1000BASE-T1 EMC Converter is especially designed for measurements within the EMC chamber. It is delivered in a Set with an adapter board which enables internal PHY status readings and provides one point-to-point connection between Automotive Gigabit Ethernet and SFP Gigabit Ethernet, with which optical fibre modules are used. 1000BASE-T1 EMC转换器专为EMC暗室测量而设计。它以套件形式提供，有一个适配板可实现内部PHY状态读取，并实现车载千兆以太网和使用光纤SFP模块的千兆以太网之间实现点对点通信。 The device provides an SFP Port to connect a standard Ethernet RJ45 module or to use an optical Gigabit Ethernet SFP Module. 该设备提供SFP端口以连接标准以太网RJ45模块或光纤千兆以太网SFP模块。 No packages are stored or modified within the device. The process is a direct physical layer conversion, where the hardware was especially developed and optimized to provide the best possible EMC behavior. 设备中不存储或修改任何包。该过程是直接的物理层转换，其中硬件经过特别开发和优化，以提供最佳的EMC性能。 Thus, the 1000BASE-T1 Converter EMC is the ideal solution for working quickly and efficiently with the new 1000BASE-T1 technology, and it is the ideal device to perform EMC test through the optical interface. 因此，1000BASE-T1转换器EMC是使用新型1000BASE-T1技术快速高效工作的理想解决方案，是通过光学接口执行EMC测试的理想设备。 Features 产品特点
-
Converts IEEE 1000BASE-T1 full duplex to Gigabit Ethernet (1000BASE-T or optical Ethernet) 将1000BASE-T1全双工转换至千兆以太网（1000BASE-T或光纤）
-
Master/slave configuratio 主/从 配置
-
Configuration DIP switches DIP配置开关
-
Status LEDs 状态灯
-
SFP Module allows optical Ethernet connection or standard Gigabit Ethernet through RJ45 Connector SPF模块可以实现光纤以太网和使用RJ45接口的标准千兆以太网
-
Allows to perform EMC test through the optical interface 可通过光纤接口实现EMC测试
-
Automotive MateNET connector and cables included (Power, 1000BASE-T1)
-
Stainless steel housing 不锈钢外壳
-
Power supply: 10 to 13 Vold DC (nominal 12 Volt DC), 供电：10-13伏直流，
-
power consumption: 3 Watt 功率:3 Watt
-
Size: 95 x 95 x 32mm 尺寸：95 x 95 x 32 毫米
